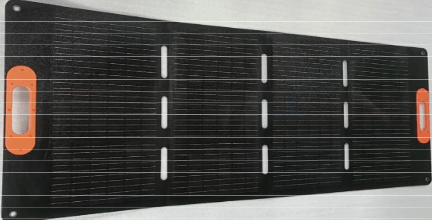

Foldable Solar Panel 120 W – Helios

Foldable Solar Panel 120 W – Helios

Model TR-120MB
Peak Power (Pmax) 120W
Cell Efficiency ≥23%
Maximum Power Voltage (Vmp) 19.5V
Maximum Power Current (Imp) 6.15A
Open Circuit Voltage (Voc) 22.6V
Short Circuit Current (Isc) 6.52A
Power Tolerance ± 3%
Maximum System Voltage 700V
Series Fuse Rating (A) 15
Temperature Coefficients
Temperature Coefficient of Isc (%) +0.07% /℃
Temperature Coefficient of Voc (%) -0.36% /℃
Temperature Coefficient of Pmax (%) -0.38% /℃
Operating Temperature -10~60℃
Specifications
Bag Material: Waterproof Fabric
Bag Color: Black color
Expanded size: 1485 x 600 mm
Each panel size: 415*600mm x 4panel
Weight: 5.2 kg
Output: MC4 Connect 2.5meter
Warranty 1year and service life 5years

Dimensions
